Google Pub/Sub Integration

Connect Fleak to Google Cloud Pub/Sub using a service account or OAuth token to pull from subscriptions and publish to topics in your workflows.

Google Cloud Pub/Sub is a fully managed, real-time messaging service that allows you to send and receive messages between independent applications. The Pub/Sub integration in Fleak stores your GCP credentials so that Pub/Sub source and sink nodes can authenticate without requiring credentials to be set per-node.

Setting Up Pub/Sub Integration​

  1. Click on your username in the top left corner of the Fleak dashboard
  2. Select Settings from the dropdown menu
  3. Click on Integrations in the settings sidebar

Integrations Settings Menu

Add Pub/Sub Integration​

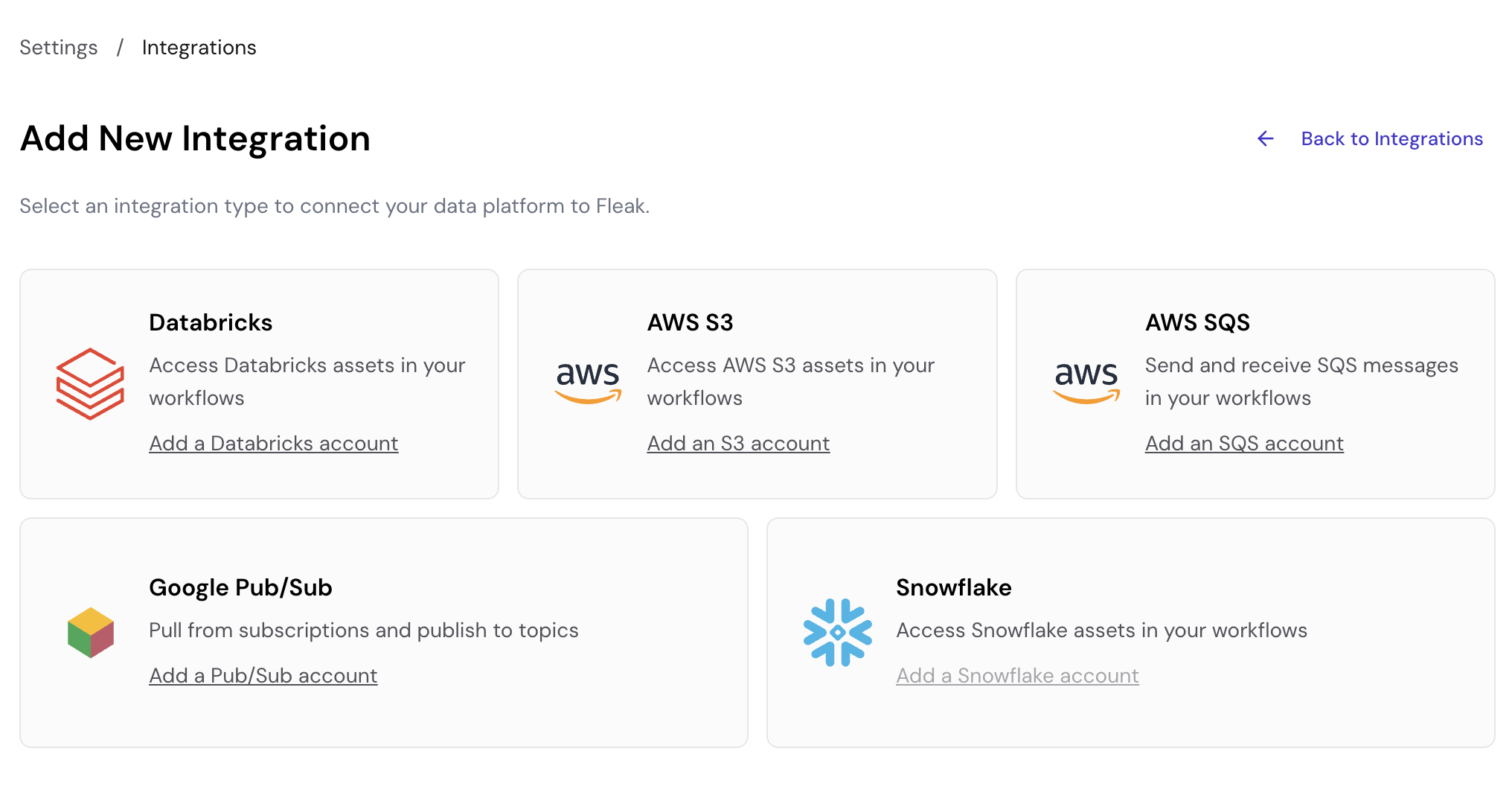

On the Integrations page, click Add New Integration, then select Add a Pub/Sub account.

Add New Integration

Configure Connection Details​

Fill in the following fields:

  • Connection Name: A descriptive name for your connection (e.g., "My Pub/Sub Integration")
  • Authentication Type: Choose how Fleak authenticates with GCP:
    • Service Account JSON keyfile — paste the full JSON key file downloaded from the GCP console. Recommended for production use because service account credentials do not expire.
    • OAuth access token — provide a short-lived OAuth 2.0 token (e.g., from gcloud auth print-access-token). Suitable for testing; tokens typically expire after one hour.
  • GCP Project ID (optional): Your GCP project ID (e.g., my-project-id). Required only when topics or subscriptions are referenced by short ID in the node configuration rather than by their full resource path.
  • Service Account JSON (when using JSON keyfile auth): Paste the entire contents of the JSON key file for your service account.
  • OAuth Access Token (when using OAuth access token auth): Paste a valid access token.

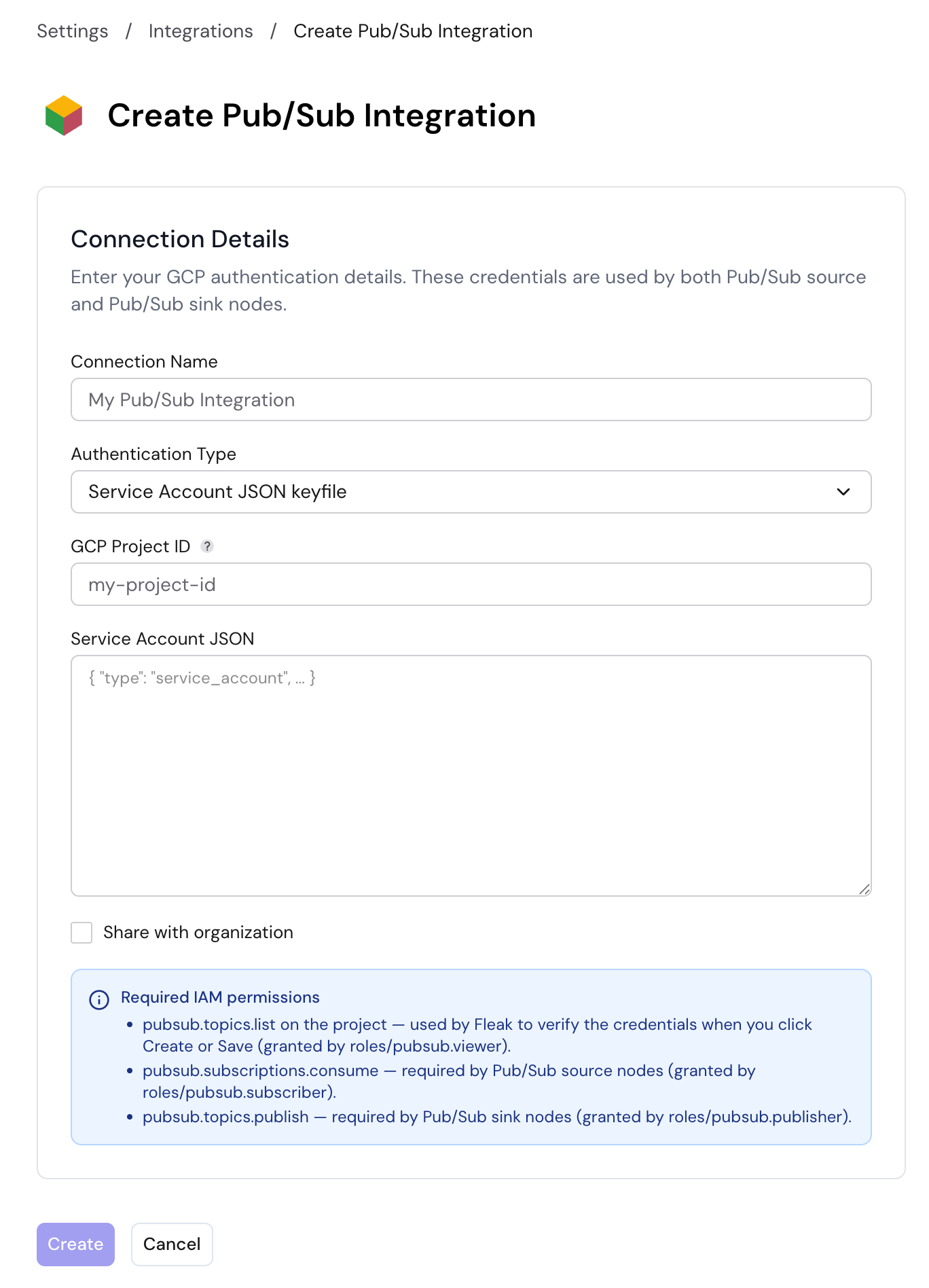

Create Pub/Sub Integration

Click Create to save the integration. Fleak validates the credentials by checking that pubsub.topics.list is accessible before saving.

tip

Enable Share with organization to make this integration available to other members of your organization. Leave it unchecked to keep the integration private to your account.

note

If you are editing an existing integration, leave the credential fields blank to keep the saved values unchanged.

Required IAM Permissions​

The service account or token must have the following GCP IAM permissions granted:

PermissionPurposePredefined Role
pubsub.topics.listUsed by Fleak to verify credentials on saveroles/pubsub.viewer
pubsub.subscriptions.consumeRequired by Pub/Sub source nodes to pull messagesroles/pubsub.subscriber
pubsub.topics.publishRequired by Pub/Sub sink nodes to publish messagesroles/pubsub.publisher

Using Pub/Sub in Workflows​

Once a Pub/Sub integration is saved, it appears in the Google Pub/Sub Integration dropdown on both the Pub/Sub Source and Pub/Sub Sink nodes. Select it there — the node then uses the stored project ID and credentials automatically.
